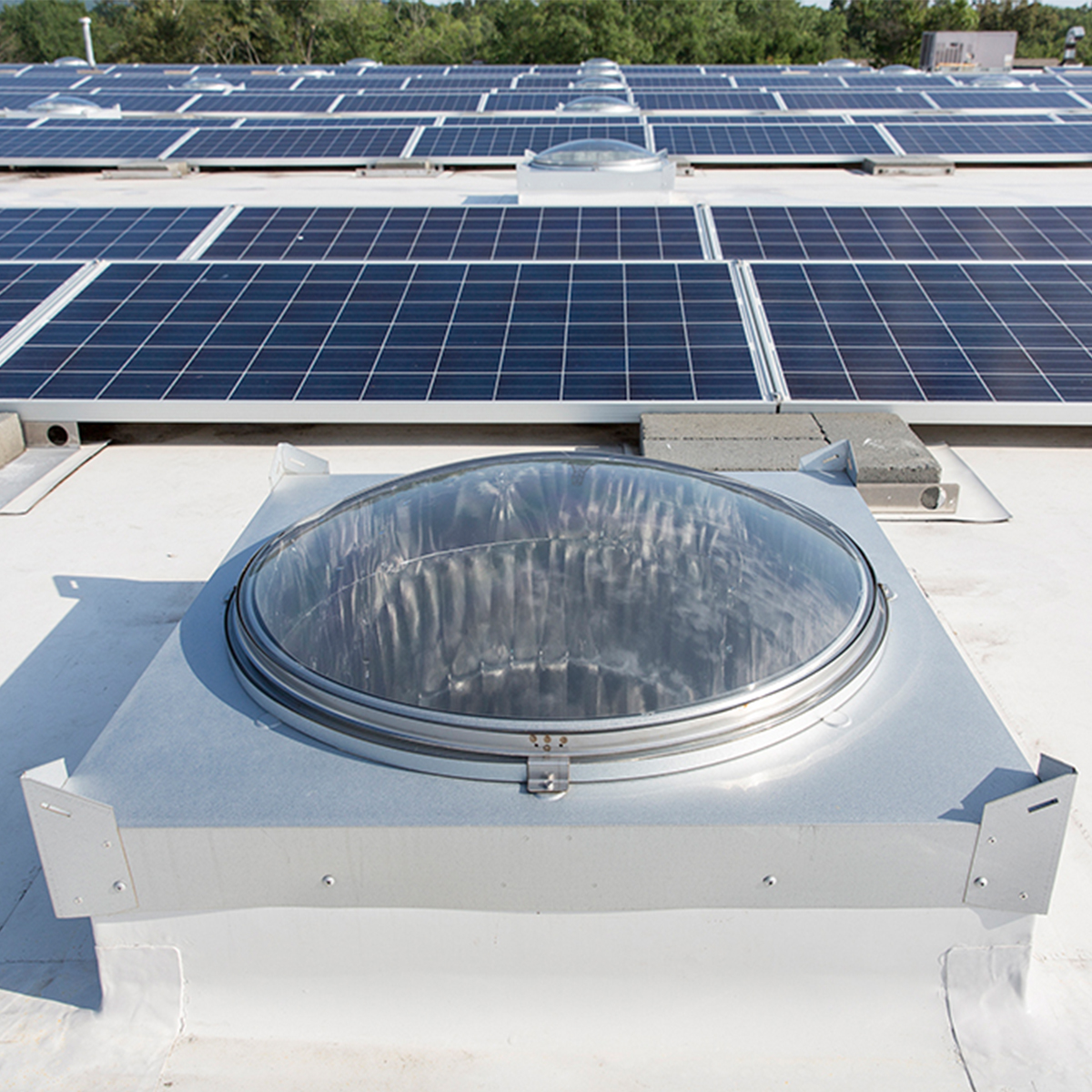

SkyVault M74 DS
![](https://solatube.com/wp-content/uploads/2021/02/SkyVault_Large.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/skyvault-m74-ds.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/skyvault-m74-ds-internal.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/sv_profile_collector_amplifier_cutaway.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/SkyVault_Large.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/skyvault-m74-ds.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/skyvault-m74-ds-internal.jpg)
![](https://solatube.com/wp-content/uploads/2021/02/sv_profile_collector_amplifier_cutaway.jpg)

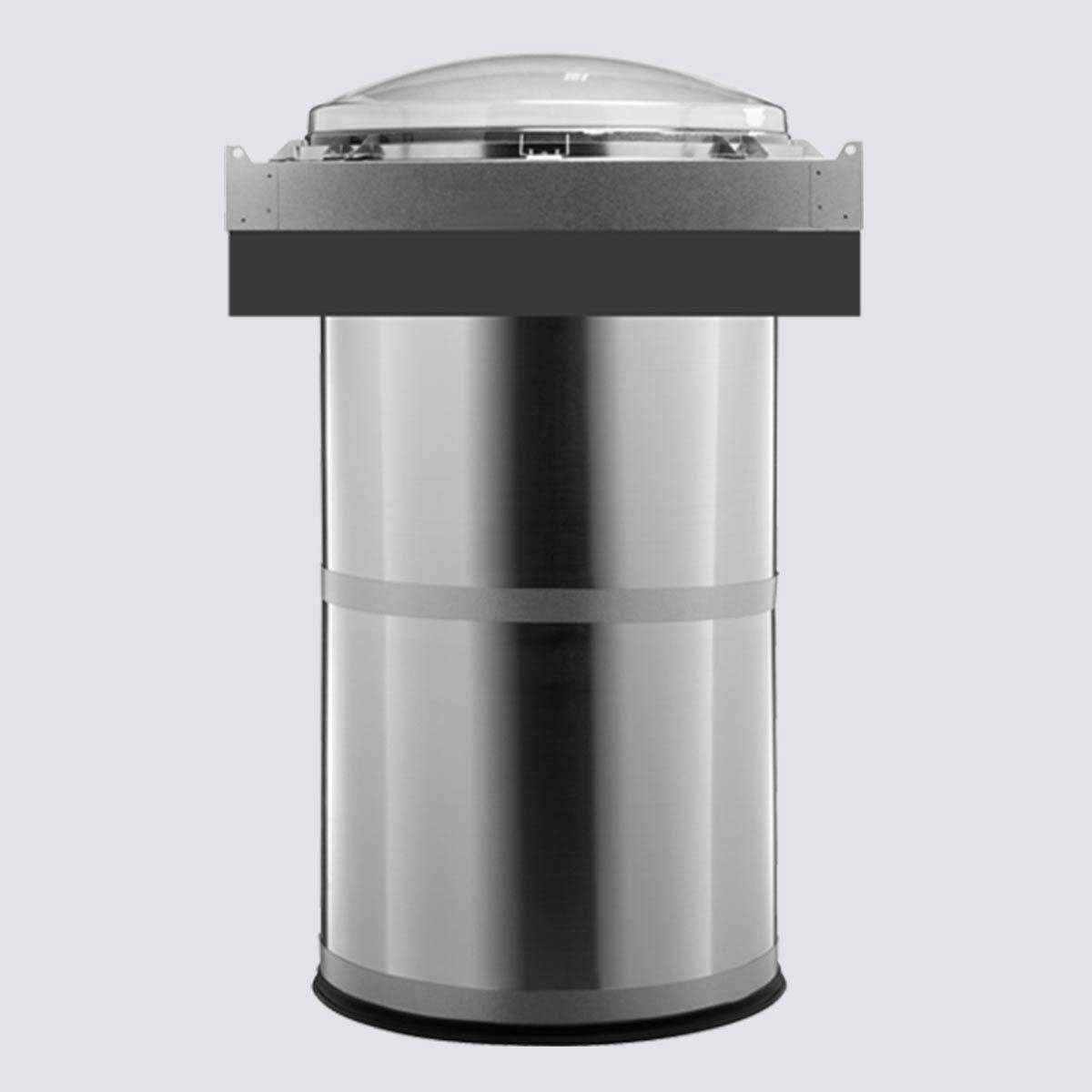

The Solatube M74 DS is the core of the SkyVault Series, and is available with the following pre-assembled configurations:
- Single-glazed dome assembly
- Single-glazed dome assembly with security guard
- Dual-glazed dome assembly
- Dual-glazed dome assembly with security guard
Tube size ≈ 29 in. (74 cm)
Potential tube length ≈ 100 ft. (30 m)
Applications
- Airports
- Convention Centers
- Hospitality
- Warehouse & Industrial
- Retail
- Military
Technical Resources: CAD Drawings, Cut Sheets, Architectural Spec, Install Instruction, BIM Modeling
